Angle of Incidence in Optics

Definition

The angle of incidence is the angle between an incident ray (such as a light ray) and the normal—a line perpendicular to the surface—at the exact point where the ray strikes. This fundamental geometric relationship governs how light and other waves interact with surfaces, whether by reflection, refraction, or absorption. Always measured from the incident ray to the normal, the angle of incidence is denoted as ( i ) or ( \theta_i ) in scientific literature.

Understanding the angle of incidence is crucial across optics, engineering, aviation, and telecommunications, as it determines the next path of the ray—whether it bounces back, bends, or is absorbed.

Key Concepts

Point of Incidence:
The specific location on a surface where the incident ray meets it.

Normal:
An imaginary line perpendicular (90°) to the surface at the point of incidence. For curved surfaces, the normal is perpendicular to the tangent at the point of contact.

Angle of Incidence ((i)):
Measured between the incident ray and normal, within the initial medium.

Angle of Reflection:
The angle between the reflected ray and the normal. For ideal mirrors, this equals the angle of incidence.

Angle of Refraction:
The angle between the refracted (bent) ray and the normal as the ray passes into another medium.

Glancing Angle:
The angle between the incident ray and the surface itself, complementary to the angle of incidence.

Mathematical Formulation

The angle of incidence is measured in degrees (°) or radians.

Standard Definition

[ \text{Angle of Incidence} = \text{Angle between incident ray and normal at the point of incidence} ]

From Surface Angle

If you know the angle (( \alpha )) between the incident ray and the surface: [ i = 90^\circ - \alpha ]

Using Trigonometry

If the incident ray approaches at height ( h ) and distance ( d ): [ i = \arctan\left(\frac{h}{d}\right) ]

Vector Form (Advanced)

[ i = \arccos\left( \frac{ \vec{r} \cdot \vec{n} }{ |\vec{r}| |\vec{n}| } \right ) ] where ( \vec{r} ) is the incident ray direction, and ( \vec{n} ) is the normal vector.

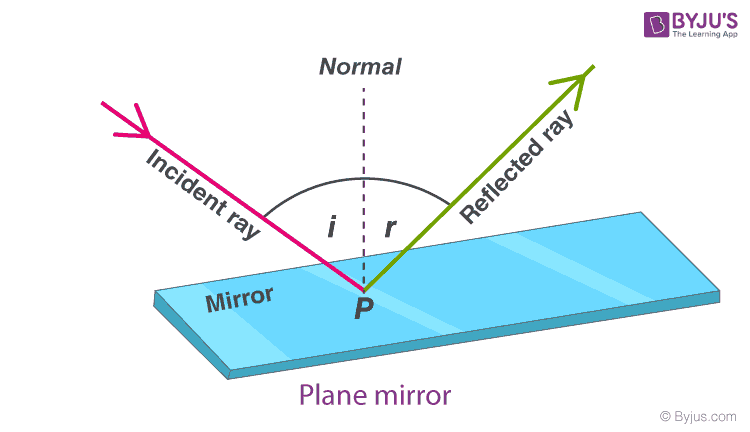

Visual Explanation

The angle of incidence ((i)) is shown between the incident ray and the normal to the surface at the point where the ray meets the boundary.

Worked Examples

Example 1:
A light ray strikes a flat mirror at 10° with the surface. What is the angle of incidence?
Solution: (i = 90^\circ - 10^\circ = 80^\circ)

Example 2:
A ray makes a 56° angle with a reflective surface.

• Angle of incidence: ( 34^\circ )
• Angle of reflection: ( 34^\circ )
• Angle between reflected ray and surface: ( 56^\circ )
• Angle between incident and reflected rays: ( 68^\circ )

Example 3:
A light ray in air (( n_1 = 1.00 )) strikes water (( n_2 = 1.33 )) at ( 45^\circ ). What’s the refracted angle?
By Snell’s Law:
[ 1.00 \times \sin(45^\circ) = 1.33 \times \sin(r) \implies r \approx 32.1^\circ ]

Example 4:
Fiber optic cable (glass ( n_1 = 1.5 ), cladding ( n_2 = 1.48 )): What’s the minimum angle for total internal reflection?
[ \sin(C) = \frac{1.48}{1.5} \implies C \approx 80.7^\circ ] Total internal reflection occurs for incidence angles greater than 80.7° (from the normal).

Laws and Relationships

Law of Reflection

[ \text{Angle of incidence} = \text{Angle of reflection} ]

Both measured from the normal. This law applies to flat and curved mirrors, polished metals, and some transparent surfaces.

Refraction (Snell’s Law)

[ n_1 \sin(i) = n_2 \sin(r) ]

Where ( n_1 ), ( n_2 ) are refractive indices, ( i ) is the angle of incidence, and ( r ) is the angle of refraction.

Total Internal Reflection & Critical Angle

Occurs when light goes from a denser to a less dense medium and: [ \sin(C) = \frac{n_2}{n_1} ] Total internal reflection happens if ( i > C ).

Applications

• Mirrors & Optical Devices: Determines ray paths in periscopes, telescopes, laser systems, and cockpit displays.
• Lenses & Imaging: Affects focus, image clarity, and optical design.
• Fiber Optics: Ensures light remains within fiber for efficient data transmission.
• Aviation: Cockpit window design and anti-glare measures are based on controlling incident angles.
• Astronomy: Mirror placement and telescope design rely on precise angle management.
• Medical Devices: Endoscopy and laser tools depend on internally reflected light paths.
• Gemstones: Cutting facets at specific angles maximizes total internal reflection and brilliance.
• Everyday Life: Reflection in water, mirages, and anti-glare coatings on glasses.

Quick Facts

• Measured from the normal—not the surface.
• Law of reflection: angle of incidence = angle of reflection.
• Snell’s Law: relates incidence and refraction angles.
• Total internal reflection: angle must exceed the critical angle.
• Glancing angle = 90° – angle of incidence.
• Key in optics, aviation, fiber optics, and more.

Did You Know?

• Diamond sparkle is due to facets that increase the likelihood of total internal reflection, maximizing brilliance.
• Fiber optics depend on angles of incidence above the critical angle to transmit internet signals long distances.
• Mirages form when incident angles cause light to bend through layers of air at different temperatures.

Summary Table

Review Questions

1. A light ray makes a 25° angle with a glass surface. What is its angle of incidence?
   Answer: 65°

2. If the angle of incidence is 40° and air/water indices are 1.0/1.33, what is the refraction angle?
   Use Snell’s Law to calculate.

3. Why do diamonds sparkle so much?
   Facets are cut so that internal angles of incidence exceed the critical angle, causing repeated total internal reflections.

The angle of incidence is a simple yet profoundly important concept for anyone working with light, optics, or any wave encountering a boundary. Its correct understanding ensures precise engineering, brilliant design, and advances across science and technology.
