Course Deviation

Course deviation is the angular difference, measured in degrees, between an aircraft’s actual flight path (track over the ground) and the intended or desired flight path as plotted during flight planning. Course deviation is foundational to all forms of aircraft navigation, whether using VOR (VHF Omnidirectional Range), GPS, or advanced Flight Management Systems (FMS).

The International Civil Aviation Organization (ICAO) defines course deviation as the angular distance by which an aircraft has diverged from its planned course—crucial for maintaining route integrity, especially in controlled airspace, on published airways, or during instrument procedures. Course deviation is detected and displayed to the pilot via analog instruments (like the Course Deviation Indicator, or CDI), glass cockpit displays, and sometimes auditory cues.

In practical terms, course deviation tells pilots how far left or right the aircraft has wandered from its intended ground track. Real-time monitoring of this parameter is essential for navigation accuracy, especially where strict Required Navigation Performance (RNP) or Performance-Based Navigation (PBN) standards apply.

Aircraft rarely fly perfectly straight paths due to wind, atmospheric conditions, instrument limits, and pilot response times. Thus, course deviation is dynamic, requiring pilots and automated systems to constantly monitor and minimize it. Even small deviations can be critical in crowded airspace, on approaches, or along oceanic routes.

Related Navigation Terms

• True Course (TC): The planned path over the ground, measured from true north.
• Magnetic Course (MC): The intended path adjusted for local magnetic variation.
• Heading: The direction in which the aircraft’s nose is pointed—true, magnetic, or compass.
• Bearing: The angle between the aircraft’s position and a navigation aid or waypoint.
• Track: The actual path over the ground, possibly differing from the planned course due to wind or other factors.
• Wind Correction Angle (WCA): The angle added or subtracted from the desired course to compensate for wind.
• Compass Deviation: Error in the compass caused by local magnetic fields within the aircraft.
• Magnetic Variation (Declination): The angle between true north and magnetic north at a specific location.
• Course Correction Angle: The angle to re-intercept the desired course after a deviation.

How Course Deviation Is Used

Course deviation is central to aircraft navigation and control. Pilots and flight systems constantly monitor for deviation to ensure the aircraft remains within navigation tolerances. This is critical for:

• En Route Navigation: Maintaining planned course along airways, oceanic routes, or within controlled airspace. Even minor deviations can cause loss of separation in dense airspace.
• Instrument Approaches: During approaches, especially precision (ILS) and RNP approaches, tight monitoring of course deviation is mandatory; excessive deviation can require a missed approach.
• Airline SOPs: Standard Operating Procedures specify maximum allowable deviations, based on regulations or manufacturer standards.
• Course Deviation Indicator (CDI): Primary tool for visualizing course deviation, especially in VOR or GPS navigation.
• Flight Management System (FMS): Modern FMS and GPS systems provide graphical and numeric course deviation data.
• ATC Requirements: In certain airspace (RVSM, RNP), course deviation must be kept within strict limits (e.g., ±1 NM lateral deviation 95% of the time).

Continuous monitoring and correction of course deviation ensure safety, compliance, and efficient airspace usage.

Causes of Course Deviation

Wind Drift: The most common cause. Winds push the aircraft off its intended ground track. Pilots apply a wind correction angle, but changing winds may require further adjustment.

Magnetic Variation & Deviation: Variation is the difference between true and magnetic north; deviation is compass error from aircraft magnetic fields. Both require correction to maintain the intended track.

Navigation System Errors: Instrument errors (e.g., VOR signal bending, GPS multipath), sensor inaccuracies, or inertial drift can cause incorrect course indications.

Pilot Technique: Human error, delayed responses, or incorrect corrections can cause or worsen course deviation.

Flight Technical Error (FTE): The inability of pilot or autopilot to precisely fly the defined path.

Environmental Factors: Turbulence, mechanical issues, or asymmetric thrust can also cause the aircraft to deviate.

Total System Error (TSE): ICAO defines TSE as the sum of path definition error, navigation system error, and flight technical error.

Measuring and Interpreting Course Deviation

Manual Navigation (CDI Use):

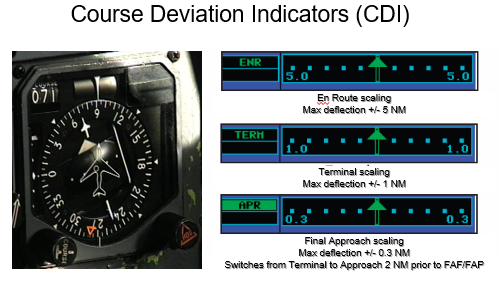

The Course Deviation Indicator (CDI) is used in VOR and GPS navigation. With a vertical needle and scale, the CDI shows how far and in which direction the aircraft is from the selected course. Each dot may represent 2°, and full-scale deflection typically means 10° or more off course for a VOR, or a set distance (e.g., 5 NM) for GPS. Pilots “fly toward the needle” to correct.

Modern Avionics (HSI/GPS/FMS):
Glass cockpits provide course deviation graphically and numerically. The Horizontal Situation Indicator (HSI) integrates heading, course, and deviation. GPS/FMS displays show moving maps with deviation bars or numeric readouts.

Interpretation:
The direction and magnitude of deviation indicate the direction and urgency of correction. Exceeding certain thresholds can result in failed approach segments or ATC intervention.

ICAO Standards:
ICAO specifies maximum allowable deviations for each phase of flight. For example, RNP 1 requires lateral deviation within ±1 NM for 95% of the flight.

Step-by-Step Example: Calculating and Correcting Course Deviation

Scenario: Aircraft planned on a true course of 090° (east), with a 20-knot wind from the north.

1. Detect Deviation: The CDI needle deflects to the right, indicating left-of-course (south) drift.
2. Quantify Deviation: CDI shows a 5° deviation.
3. Calculate Correction: Pilot turns to a heading north of 090° (e.g., 095°), using an E6-B or FMS for precise WCA.
4. Return to Course: The aircraft regains the centerline; pilot maintains the wind correction angle.

This process—detection, interpretation, correction, monitoring—is continuous.

Memory Aids and Rules of Thumb

• East is Least, West is Best: For magnetic variation: subtract east, add west.
• Follow the Needle: When using a CDI, always turn toward the needle.
• Wind Correction: Crosswind divided by groundspeed, times 60, approximates degrees per NM.
• Deviation Card: Always check the aircraft’s deviation card for compass corrections.

Examples and Use Cases

• VOR Navigation: Pilot selects the 045° radial from a VOR. Wind from the southeast causes drift; CDI shows 5° deviation. Pilot corrects heading, recenters the needle.
• GPS Navigation: On a GPS track of 180°, display shows 0.3 NM left of course. Pilot turns right, monitors deviation until rejoining the route.
• Compass Heading with Deviation: To fly a magnetic heading of 090°, deviation card shows 3° west deviation. Pilot flies 087° on the compass.
• RNP Approach: On an RNP 0.3 approach (±0.3 NM allowable deviation), pilot continuously monitors navigation display and initiates missed approach if necessary.
• Oceanic Flight: Over oceanic routes, GPS/inertial systems are used; even small deviations can be critical.

Course Deviation and Navigation Accuracy

• Lateral Accuracy and RNP: Course deviation is a direct measure of lateral accuracy. ICAO’s PBN concept sets specific requirements (RNP 10, RNP 4, RNP 1, RNP AR APCH).
• Total System Error (TSE): TSE is the sum of path definition error, navigation system error, and flight technical error.
• Manual vs. Automated Correction: Autopilot and flight directors reduce FTE, but pilots must always monitor performance.
• ATC and Procedural Compliance: Excessive deviation may trigger ATC intervention or require a missed approach.
• Safety and Airspace Efficiency: Minimal deviation ensures aircraft separation, obstacle clearance, and efficient sequencing.

Quick Reference Table: Course Deviation and Related Angles

Visual Aids

True Course vs True Heading vs Magnetic Heading

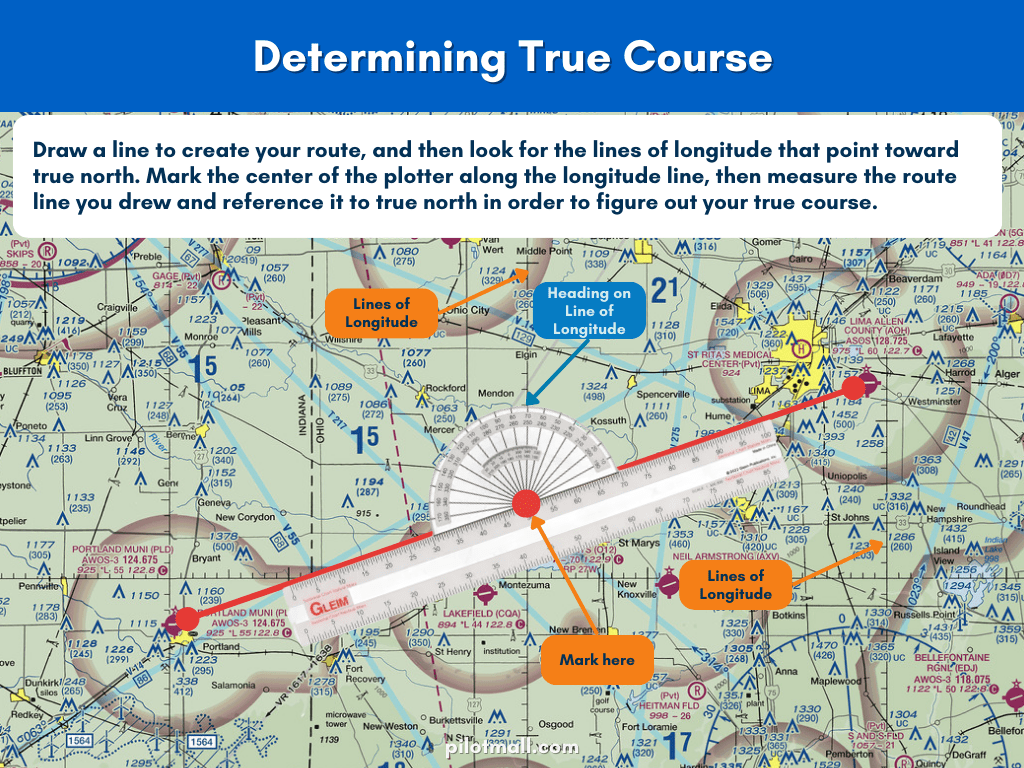

How to Determine Your True Course

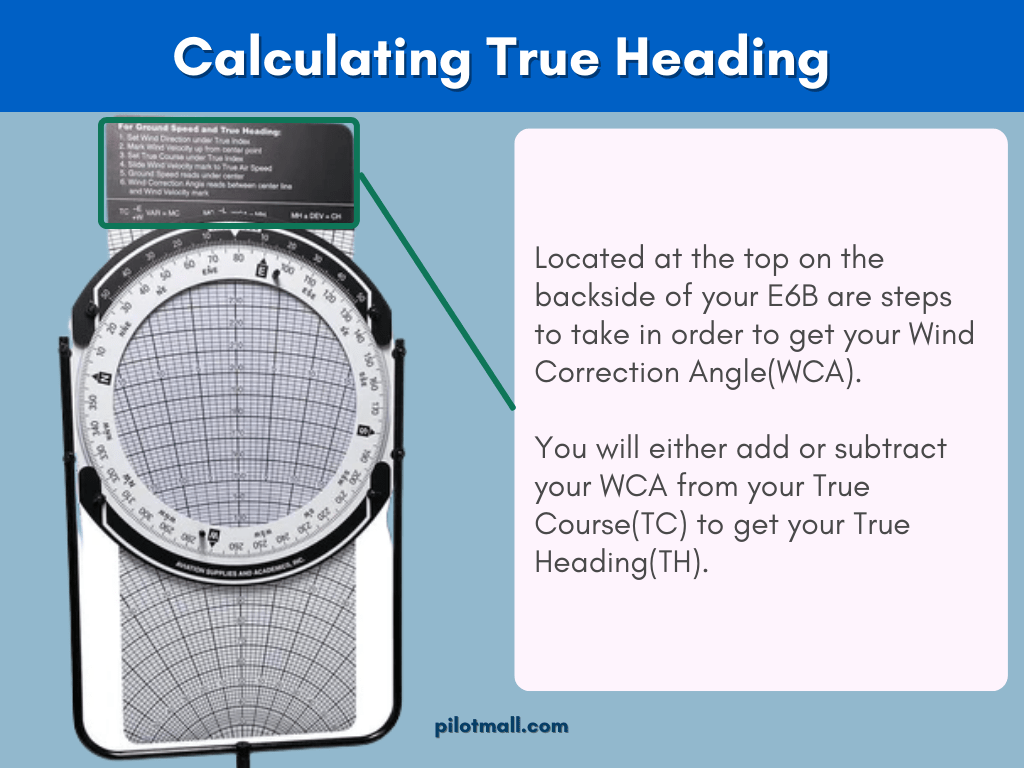

Calculating True Heading

Course Deviation in ICAO and International Standards

ICAO’s Performance-Based Navigation (PBN) framework underpins international navigation requirements. PBN defines specifications (RNAV 5, RNP 1, RNP AR APCH, etc.) with specific lateral accuracy requirements. Operators must monitor navigation performance and report significant deviations to ATC. Adhering to these standards ensures global safety and airspace efficiency.

References

• ICAO Annex 11 – Air Traffic Services
• ICAO Doc 9613 – Performance-Based Navigation (PBN) Manual
• FAA Instrument Flying Handbook
• PilotMall: True Course vs. True Heading vs. Magnetic Heading
• EASA Part-FCL Syllabus

Course deviation—understand it, monitor it, and correct it for safer, more efficient flights.
