Cylindrical – Comprehensive Glossary & In-Depth Analysis

Cylindrical: Definition and Core Characteristics

Cylindrical describes objects or shapes that possess the geometric properties of a cylinder. In mathematics and physics, a cylinder is a three-dimensional solid defined by two parallel, congruent bases (usually circles) connected by a single, continuous curved surface. The defining features include symmetry around a central axis, a uniform cross-section along that axis, and a constant radius if the bases are circular. The concept is foundational in geometry, engineering, aviation, architecture, and physics, describing both natural and manufactured objects—from aircraft fuselages and fuel tanks to columns and pipes.

The term originates from the Greek kylindros meaning “roller”—reflecting both form and rotational potential. In geometry, a cylinder is the locus of all points at a fixed distance (radius) from a given straight line (axis), and its length (height) determines its extent. This definition covers both solid and hollow forms, as seen in piping or shell structures.

Cylindrical objects are characterized by:

• No vertices,
• Two edges (where the curved surface meets the bases),
• Three faces (two bases, one lateral surface),
• Central axis of symmetry.

This geometry is central in aviation and engineering for its efficiency in stress distribution, aerodynamic benefits, and ease of calculation for volume, surface area, and center of gravity.

The Anatomy of a Cylinder

A cylinder comprises:

• Two parallel, congruent bases: Usually circles or ellipses.
• Curved lateral surface: When unwrapped, this forms a rectangle with length equal to the circumference of the base and width equal to the height.
• Axis: A straight line passing through the centers of both bases.

Key parameters:

• Radius (r): Distance from the center to the edge of the base, constant at all cross-sections.
• Height (h): Perpendicular distance between the two bases.
• Lateral surface area: The area of the curved side (circumference × height).
• Total surface area: Curved side plus both bases.

In aviation, the cylindrical shape is favored for pressure cabins and fuel tanks due to even stress distribution. Its mathematical simplicity allows for precise calculations essential in design and safety analysis.

Cylindrical Symmetry and Mathematical Implications

Cylindrical symmetry means the object looks identical after rotation around its axis. This property is essential in mathematics, physics, and engineering, simplifying analysis in:

• Fluid dynamics
• Electromagnetics
• Structural mechanics

Mathematically, cylindrical symmetry is described using cylindrical coordinates (r, θ, z), where properties depend only on the distance from the axis and height, not the angle. This system is crucial in solving equations for pipes, ducts, and other cylindrical aircraft components.

In engineering, cylindrical symmetry enables efficient design and manufacturing, allowing for automation and quality control.

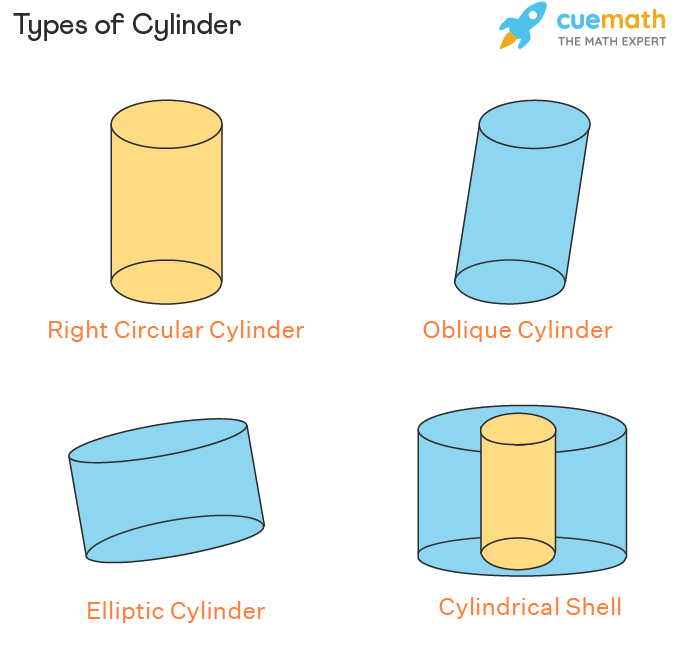

Types of Cylinders: Classification

Several cylinder types are used in engineering and mathematics:

• Right circular cylinder: Axis perpendicular to circular bases. Most common in aviation (fuselages, tanks, pressure vessels).
• Oblique cylinder: Axis not perpendicular to the bases; skewed shape, used less frequently.
• Elliptic cylinder: Bases are ellipses; used for aerodynamic fairings or aesthetic architectural features.
• Hollow cylinder (cylindrical shell): Space between two concentric cylinders (pipes, ducts, hydraulic cylinders).

Each type has specific formulas for volume, surface area, and structural analysis, directly impacting their application in aircraft and airport structures.

Mathematical Formulation of Cylindrical Geometry

Volume

[ V = \pi r^2 h ] Where r = radius, h = height.

Curved (Lateral) Surface Area

[ CSA = 2\pi r h ]

Total Surface Area

[ TSA = 2\pi r (r + h) = 2\pi r h + 2\pi r^2 ]

For hollow cylinders: [ V = \pi h (R^2 - r^2) ] Where R = outer radius, r = inner radius.

Oblique or elliptic cylinders use modified formulas, sometimes involving elliptical integrals or trigonometric adjustments.

Cylindrical Coordinates and Applications

Cylindrical coordinates (r, θ, z) are vital for:

• Modeling fluid flow in pipes and tanks,
• Electromagnetic field analysis in cables,
• Stress analysis in fuselages.

Transformations: [ x = r \cos \theta \ y = r \sin \theta \ z = z ]

This system simplifies complex equations and is widely used in aviation design and simulation.

Cylindrical Structures in Aviation

Cylindrical geometry underpins many aviation components:

• Aircraft fuselages: Designed as pressurized cylinders for uniform stress and safety.
• Jet engine chambers: Cylindrical for even airflow and efficient combustion.
• Fuel and hydraulic tanks: Maximize volume, minimize weight.
• Air traffic control towers, radar domes: Structural stability and minimal wind resistance.

Cylindrical forms are critical for structural integrity, aerodynamic efficiency, and ease of manufacturing.

Advanced Concepts: Cylindrical Shells and Segments

• Cylindrical shells: Hollow cylinders, important for calculating volumes of revolution.
• Cylindrical segments: Portions of cylinders, often requiring advanced calculus for volume/surface area calculations.
• Cylindrical annuli: Space between two concentric cylinders, essential for pipes, insulation, and ducts.

Formulas for these shapes adjust to accommodate inner/outer radii and cut angles.

Material Science: Cylindrical Stress and Failure

Pressurized cylinders experience:

• Hoop stress (circumferential): [ \sigma_h = \frac{P r}{t} ]
• Longitudinal stress (axial): [ \sigma_l = \frac{P r}{2t} ] Where P = pressure, r = radius, t = wall thickness.

Failure modes include buckling, yielding, and fracture. Engineers must ensure maximum stresses remain within material limits, applying appropriate safety factors.

Aerodynamics of Cylindrical Bodies

Cylindrical bodies in airflow produce:

• Lift and drag forces
• Kármán vortex streets (turbulent wakes)
• Aerodynamic drag reduction strategies (fairings, vortex generators)

Cylindrical models are used in wind tunnel testing and CFD simulations to optimize design and performance.

Cylindrical Geometry in Control Systems and Instrumentation

• Gyroscopes: Cylindrical rotors for balanced, stable rotation in navigation systems.
• Pressure sensors and flow meters: Cylindrical chambers enable predictable, uniform measurement.
• Flight data recorders: Cylindrical casings for impact and fire resistance.

Cylindrical Structures in Airport Infrastructure

• Control towers: Cylindrical shafts for panoramic visibility and wind resistance.
• Fuel storage tanks: Large cylinders for maximum volume, minimal surface area.
• Radar domes (radomes): Spherical or cylindrical for durability and minimal electromagnetic interference.

Cylindrical Mathematics in Navigation and Cartography

Cylindrical map projections (e.g., Mercator) project Earth’s surface onto a cylinder, preserving straight lines as constant compass bearings—aiding long-distance flight navigation.

Aviation uses these projections in flight path plotting, GPS, and flight management systems.

Volume and Capacity Calculations in Aircraft Design

Cylindrical tanks are preferred for volume efficiency. For partially filled horizontal tanks, integral calculus accounts for varying cross-sectional area with fluid depth.

For a vertical cylinder: [ V = \pi r^2 h ]

For a horizontal, partially filled cylinder, specialized formulas apply, ensuring accurate fuel and fluid capacity measurements for safety and performance.

Conclusion

Cylindrical geometry is fundamental in aviation, engineering, physics, and mathematics. Its properties enable efficient, safe, and robust design of critical components—from fuselages and tanks to control towers and sensors. Mastery of cylindrical principles ensures structural integrity, aerodynamic performance, and accurate measurement across the aerospace industry and beyond.
