Doppler Effect (Doppler Shift): Aviation and Physics Glossary

The Doppler Effect—also called the Doppler Shift—is a fundamental physical phenomenon that describes how the frequency and wavelength of any wave (sound, electromagnetic, or water) change for an observer moving relative to the wave source. In aviation, this effect is central to radar systems, navigation, wind shear detection, weather surveillance, and collision avoidance, making it a cornerstone of modern flight safety and operational efficiency.

Historical Background

The Doppler Effect was first described in 1842 by Austrian physicist Christian Doppler, who theorized that starlight frequency and color shift due to relative motion. Experimentally confirmed for sound in 1845 by Christophorus Buys Ballot and later for light in astrophysics, the effect became essential in 20th-century radar and radio technology. ICAO (International Civil Aviation Organization) standards, such as Annex 10 Volumes I and IV and Doc 8071, formalize the implementation of Doppler-based navigation and surveillance worldwide.

Physical Intuition

Imagine an ambulance racing past with its siren blaring. As it approaches, the sound waves compress, leading to a higher-pitched sound; as it moves away, the sound waves stretch, resulting in a lower pitch. This is the Doppler Effect in action—compression (increased frequency) when approaching, and stretching (decreased frequency) when receding.

Aviation harnesses this principle in Doppler radar and navigation: radar pulses emitted from an aircraft or ground station reflect off moving targets (terrain, precipitation, or other aircraft), and the frequency shift in the returning signal reveals relative velocity, wind speed, or hazard presence.

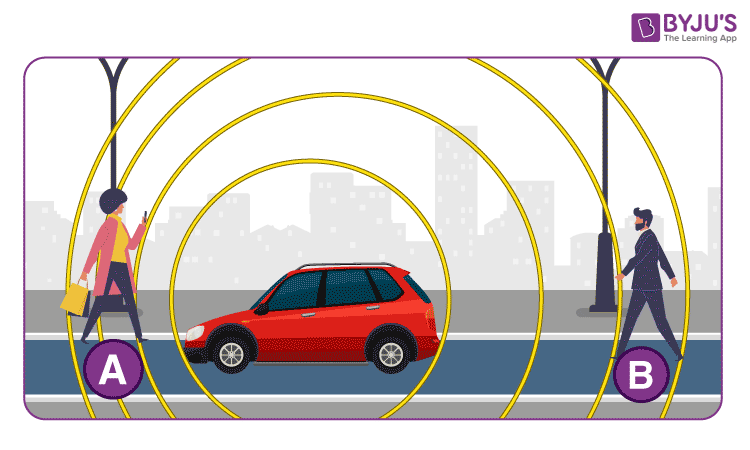

Observers in front of a moving source hear a higher pitch; those behind, a lower pitch.

Key Terms and Definitions

Mathematical Formulation

The Doppler Effect is quantified by equations relating observed frequency to source frequency and the velocities involved.

Stationary Observer, Moving Source

[ f_{obs} = f_s \left( \frac{v}{v \mp v_s} \right) ]

• Use – if source moves toward observer (frequency increases)
• Use + if source moves away (frequency decreases)

Aviation Use: Ground radar measuring moving aircraft.

Moving Observer, Stationary Source

[ f_{obs} = f_s \left( \frac{v \pm v_{obs}}{v} \right) ]

• + if observer moves toward source
• – if observer moves away

Aviation Use: Airborne radar detecting stationary terrain.

Both Source and Observer Moving

[ f_{obs} = f_s \left( \frac{v \pm v_{obs}}{v \mp v_s} \right) ]

Aviation Use: Air-to-air radar or collision systems (both aircraft in motion).

ICAO standards emphasize correct sign conventions and reference frames for safe and accurate navigation.

Worked Example: Calculating Observed Frequency

Problem:
A train horn at 150 Hz approaches a stationary observer at 35 m/s. Speed of sound = 340 m/s.

(a) Approaching:
[ f_{obs} = 150 \times \frac{340}{340 - 35} = 150 \times 1.115 \approx 167 \text{ Hz} ]

(b) Receding:
[ f_{obs} = 150 \times \frac{340}{340 + 35} = 150 \times 0.907 \approx 136 \text{ Hz} ]

Approaching yields higher frequency (167 Hz); receding, lower (136 Hz). Aviation systems perform such calculations in real-time for navigation and safety.

Special Cases and Advanced Concepts

Sonic Boom

A sonic boom results when an aircraft exceeds the speed of sound (Mach 1), forming a pressure shockwave. ICAO Doc 10049 addresses the environmental impact of such booms.

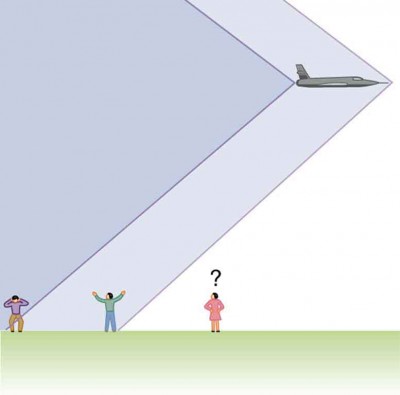

The cone of compressed air creates the sonic boom.

Bow Wake and Shock Waves

A bow wake is the V-pattern formed in a fluid by an object moving faster than wave speed—analogous to the shockwave (sonic boom) for supersonic aircraft. The shock cone’s angle is determined by the Mach number and is central to understanding supersonic flight and its effects.

Aviation Applications of the Doppler Effect

• Doppler Navigation: Onboard radar measures ground speed and drift angle by analyzing frequency shifts in signals reflected from the ground.
• Doppler Weather Radar: Detects wind gradients, microbursts, and hazardous weather by measuring the velocity of precipitation particles.
• Collision Avoidance (TCAS/ACAS): Analyzes Doppler shifts in transponder returns to determine closure rates between aircraft.
• Wind Shear Detection: Uses real-time Doppler radar data to warn flight crews of hazardous wind changes.
• SSR (Secondary Surveillance Radar): Employs Doppler techniques to improve position accuracy and reduce false targets.
• Inertial Navigation Augmentation: Doppler velocity data enhances the accuracy of inertial systems, especially for long overwater flights.

ICAO and Regulatory Context

ICAO documents, including Annex 10 Volumes I & IV and Doc 8071, define standards for Doppler navigation and radar. They specify equipment performance, calculation methods, and operational guidelines to ensure flight safety, accuracy, and harmonization of global aviation systems.

Summary

The Doppler Effect is a foundational concept in physics and aviation, enabling precise measurement of relative velocity between aircraft, ground, and atmospheric phenomena. Its application spans navigation, weather detection, collision avoidance, and environmental management, as codified in international standards. Mastery of the Doppler Effect and its mathematical principles is essential for aviation professionals and anyone seeking to understand modern flight technology.

References:

• ICAO Annex 10 — Aeronautical Telecommunications, Volumes I & IV
• ICAO Doc 8071 — Manual on Testing of Radio Navigation Aids
• ICAO Doc 10049 — Guidance on the Environmental Impact of Sonic Boom
• Christian Doppler, “On the Coloured Light of the Binary Stars…” (1842)
• Buys Ballot, Experimental confirmation (1845)
• Huggins, Slipher, and others in astrophysical applications
