Pulse – Brief Signal or Light Flash in Electronics

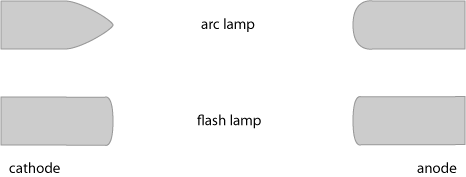

Lamp electrodes for arc and flash lamps Figure 1: Lamp electrodes for arc and flash lamps. Rounded electrodes in flash lamps are designed to handle extremely high current pulses without degradation.

Definition and Overview

A pulse is a rapid, short-duration change in an electrical or optical signal. In electronics, this commonly refers to a sudden shift between two voltage or current levels, such as a quick transition from low to high voltage (and back) or a brief flash of light. Unlike continuous signals, a pulse is distinguished by its brevity, with a defined start and end.

Pulsed signals and light flashes are essential in diverse fields:

  • Automotive: Control turn signals, hazard lights, and warning beacons.
  • Aviation: Power anti-collision strobes and alternating pulse lights for aircraft visibility.
  • Scientific and Industrial: Drive laser pumping, high-speed photography, and time-resolved measurements.
  • Safety and Emergency: Warn and alert using strobes, blinkers, and flasher modules.

Terminology varies by context: pulse, pulsed signal, light flash, flash lamp, strobe, blinker, flasher module, and strobe module. Each highlights a specific function or technology, such as energy delivery (flash lamp), repetitive operation (strobe), or signaling (blinker).

Pulse generation and detection are core to modern electronics. Digital logic, microcontrollers, and timing circuits control electrical pulses; optical pulses are managed by rapid switching of LEDs, flash lamps, or lasers. Designing pulsed systems requires expertise in electronics, thermal management, and optical physics.

Working Principle

Electrical Pulses

An electrical pulse is created when a circuit causes a rapid change between two voltage or current levels. This transition is often controlled by switches—mechanical (relays, bimetallic strips) or electronic (transistors, MOSFETs, thyristors, ICs like the 555 timer). In digital systems, microcontrollers or FPGAs produce precise pulse sequences for tasks like timing, control, and communication.

Key characteristics:

  • Amplitude (voltage/current)
  • Duration (how long the pulse lasts)
  • Repetition rate (how often it repeats)
  • Waveform shape (rectangular, exponential, etc.)

Pulse Width Modulation (PWM) is a common method for varying average power to loads like motors or LEDs by adjusting the on/off ratio within each cycle.

Light Pulses

A light pulse is a brief burst of illumination, generated by modulating the power to a light source. Different technologies have different response times:

  • Incandescent lamps: Limited by filament heating/cooling speed.
  • LEDs: Can switch on/off in nanoseconds—ideal for high-speed pulses.
  • Gas discharge (flash) lamps: Use a high-voltage pulse to trigger a capacitor discharge through the gas-filled tube, producing a very bright, short flash.

Flash lamps are engineered for high-energy, short-duration pulses (often several joules per flash), with robust electrodes and specialized glass or quartz envelopes to handle both the intense light and mechanical stresses.

Continuous vs. pulsed operation:

  • Continuous (arc lamps, steady LEDs): Constant illumination.
  • Pulsed (flash lamps, strobes): Short, intense bursts for high visibility, efficient energy use, or precise timing.

Key Parameters

ParameterDescription
Pulse DurationLength of each pulse (μs-ms); short for imaging, longer for signaling
Pulse EnergyTotal energy delivered per pulse (Joules or lumen-seconds)
Peak VoltageMax voltage during pulse; must exceed ignition threshold
Peak CurrentMax current; impacts lamp life, EMI, and circuit sizing
Flash RatePulses per second (Hz); varies by application
Duty CyclePulse duration to total cycle time ratio (%)
TriggeringHow the pulse is initiated (external, series, simmer)
LifetimeNumber of cycles before failure or degradation
Thermal ManagementCooling needed for sustained pulsed operation
EMIElectromagnetic interference from rapid transitions
Timing JitterVariation in trigger-to-pulse delay

Triggering Techniques

MethodImplementationAdvantagesDisadvantagesTypical Application
External TriggerSeparate electrode, HV pulseModular, precise timingMore insulation, complexityLaser pumping, high-end strobes
Series TriggerTransformer in main pathNo extra electrodesTransformer handles high currentCompact strobes, beacons
Simmer OperationContinuous low currentImproves life, fast triggerNeeds extra circuitry, some power lossHigh-rate lasers, industrial
  • External: High-voltage pulse to a trigger electrode initiates discharge (precise timing, modular).
  • Series: Trigger transformer in main path boosts lamp voltage for ignition (simpler lamp construction).
  • Simmer: Maintains low current between pulses for reliable, fast ignition and long lamp life.

Implementation Examples

Automotive Turn Signal (Blinker) Circuits

  • Mechanical Flasher: Uses a heated bimetallic strip to open/close lamp circuit, creating a blinking pattern. Flash rate varies with load (bulb out = faster blink).
  • Solid-State Flasher: Uses timing ICs or microcontrollers for precise, load-independent flashes. Compatible with LEDs, offers diagnostics.

Troubleshooting tip:
Rapid blinking often means a bulb failure (mechanical), while solid-state modules may display error lights.

Strobe Modules for Warning and Safety Lights

Figure 2: A commercial pulsing strobe module for automotive and industrial use.

Strobe modules drive high-power LEDs or flash lamps for emergency vehicles, construction, and industrial safety. Flash rates are programmable (1–10 Hz), with rugged, weatherproof housings and multiple patterns.

Flash Lamps in Scientific and Industrial Applications

Flash lamps pump energy into laser media (e.g., Nd:YAG rods) or provide ultra-short, intense light for high-speed imaging. Systems include:

  • Pulse-forming network (PFN): Shapes current pulse.
  • High-voltage supply: Charges main capacitor.
  • Simmer supply: Ensures reliable, low-jitter triggering.
  • Cooling: Water jackets or forced air for heat dissipation.

Alternating Pulse Light Systems (Aviation)

Alternating pulse lights (e.g., aircraft anti-collision) flash two or more lamps in sequence, maximizing visibility and minimizing power/heat. Control logic ensures only one lamp is on at a time, with fail-safes for lamp failure. Strict compliance with ICAO/FAA standards is required for flash rate and intensity.

Product Selection and Integration

FeatureMechanical FlasherSolid-State FlasherStrobe ModuleFlash Lamp Driver
Load CompatibilityIncandescent onlyIncandescent/LEDLED/universalGas discharge lamps
Flash Rate StabilityVariable (load)PrecisePrecise, programmableProgrammable
Environmental RatingBasicIP-rated optionsIP65+ availableApplication-specific
LifetimeModerateHighHighHigh (if simmered)
CustomizationLimitedHighModerateHigh (via circuit)

Installation Tips

  • Match module voltage/current to your system (12V, 24V, etc.)
  • LED upgrades: Use solid-state flashers or add load resistors to keep correct flash rate and avoid errors.
  • Safety: Use IP-rated modules in harsh environments; secure mounting and proper fusing prevent failures.

Summary

Pulses—brief changes in electrical or light signals—are foundational to modern electronics, from automotive blinkers to aviation safety strobes and scientific lasers. Proper pulse design and implementation improve safety, efficiency, and performance across industries.

For help with advanced pulsed electronics, lighting modules, or integration into your application, contact us or schedule a demo .

Frequently Asked Questions

What is a pulse in electronics?

A pulse is a rapid, temporary change in an electrical or optical signal, typically switching from a low to high state or off to on. It is used across electronics for signaling, timing, lighting, and measurement—such as in turn signals, strobes, and laser pumping.

How is a light flash different from continuous light?

A light flash is a short, controlled burst of illumination, typically generated by rapidly switching a lamp or LED on and off. Continuous light stays on, while flashes are used for signaling, safety, high-speed photography, or scientific measurements.

What are key parameters for pulsed systems?

Important parameters include pulse duration, energy, peak voltage/current, repetition (flash) rate, duty cycle, triggering method, lifetime, thermal management, EMI, and timing jitter. These define performance and suitability for specific applications.

Where are pulses used in real life?

Pulses are used in automotive turn signals, hazard lights, aviation anti-collision strobes, scientific lasers, high-speed photography, warning beacons, and industrial safety systems.

How are pulses generated and controlled?

Pulses are created using mechanical (relays, bimetallic strips) or electronic switches (transistors, ICs, microcontrollers). Control circuits set timing, repetition, and energy for precise operation in applications like lighting, signaling, and measurement.
