Trilateration – In-Depth Guide to Position Determination Using Distances

Trilateration is a geometric technique fundamental to accurate location determination in surveying, navigation, and modern geospatial technologies. Unlike triangulation, which requires the measurement of angles, trilateration relies exclusively on precise distance measurements from at least three known points—called control points—to an unknown point. This method forms the backbone of land surveying, GPS, mobile geolocation, asset tracking, and numerous applications in the geospatial and engineering fields.

Trilateration: Geometric and Mathematical Principle

In its simplest form, trilateration can be visualized as the intersection of circles (in 2D) or spheres (in 3D):

• 2D Trilateration: Each control point is the center of a circle with a radius equal to the measured distance. The intersection of three circles pinpoints the unknown location.
• 3D Trilateration: Each control point (or satellite) is the center of a sphere. The intersection of three spheres narrows the position to two points; a fourth measurement resolves the ambiguity and accounts for timing errors in GPS.

Mathematical Framework (3D):

(x - xA)^2 + (y - yA)^2 + (z - zA)^2 = dA^2
(x - xB)^2 + (y - yB)^2 + (z - zB)^2 = dB^2
(x - xC)^2 + (y - yC)^2 + (z - zC)^2 = dC^2

Where (xA, yA, zA), (xB, yB, zB), and (xC, yC, zC) are the coordinates of three control points; dA, dB, dC the measured distances; and (x, y, z) the unknown coordinates.

Trilateration vs Triangulation

Trilateration in Land Surveying: Step-by-Step

1. Establishing Control Points and Baselines

Surveying begins with control points whose coordinates are known, often via a national geodetic datum. A baseline (precisely measured distance and direction) forms the starting framework.

2. Measuring Distances to New Points

Distances from control points to unknown points are measured using total stations, EDMs, or GNSS. Reflectors or prisms are used to mark the unknown points.

3. Data Reduction and Computation

Raw slope distances are reduced to horizontal distances by correcting for elevation differences. The Law of Cosines and coordinate geometry are used to compute new point coordinates.

4. Network Expansion and Error Checking

The network is expanded by measuring new points from multiple control points, and error of closure is calculated to check the network’s accuracy. Least-squares adjustment distributes residual errors across the network.

Trilateration in GPS and Satellite Navigation

Global Navigation Satellite Systems (GNSS) like GPS are practical, real-world examples of trilateration:

• Satellite Geometry: Each GPS satellite transmits its position and time. A receiver measures signal travel time from at least four satellites.
• Sphere Intersection: Each signal defines a sphere. Intersecting these spheres yields the receiver’s (your) position.
• Clock Correction: The fourth satellite corrects the receiver’s internal clock, ensuring high-precision positioning.

Factors influencing GPS accuracy:

• Geometric Dilution of Precision (GDOP): Optimal satellite spread improves accuracy.
• Atmospheric Delays: Ionospheric and tropospheric conditions affect measurements.
• Multipath Effects: Signal reflection from surfaces causes errors.
• Receiver Quality: Professional receivers use correction algorithms and augmentation systems for better precision.

Example: Surveying a Land Parcel

1. Control Point Selection: Begin with a known monument.
2. Baseline Establishment: Measure the baseline distance and azimuth multiple times.
3. Measuring to New Points: Use a total station or EDM to measure to new points.
4. Computation: Reduce measurements, compute coordinates using coordinate geometry.
5. Error Checking: Calculate error of closure and apply least-squares adjustment for the best fit.

Key Applications of Trilateration

Land Surveying

Forms the basis for control networks in property, engineering, and topographic surveys.

GNSS/GPS Positioning

Used globally for real-time positioning in navigation, mapping, aviation, marine operations, and emergency response.

Mobile and Wireless Geolocation

Cellular and Wi-Fi trilateration provide location services for smartphones, emergency dispatch, and indoor navigation.

Asset Tracking & IoT

Used in logistics, inventory, and personnel tracking via RFID, UWB, Bluetooth, and other wireless technologies.

Accuracy, Limitations, and Best Practices

Sources of Error

• Instrumental: Calibration, noise, or mechanical errors.
• Environmental: Atmosphere, temperature, obstacles.
• Geometric: Poor triangle/sphere geometry (high GDOP).
• Human: Setup mistakes or misrecorded data.

Error Checking & Adjustment

• Error of Closure: Difference between measured and calculated positions in closed networks.
• Least-Squares Adjustment: Statistically minimizes errors across the network.

Best Practices

Trilateration in Aviation (ICAO Context)

ICAO standards (e.g., Doc 8071, Annex 10) specify trilateration for navigation aids like Distance Measuring Equipment (DME), which determines aircraft position by measuring distances from ground stations. Modern air traffic surveillance uses multilateration (time-difference of arrival) to enhance positional accuracy and safety, especially where radar is unavailable.

Performance criteria demand robust accuracy, integrity, continuity, and availability—routinely met by GNSS and augmented DME/DME systems.

Glossary of Related Terms

• Control Point: Known location used as a survey reference.
• Baseline: The initial, accurately measured line in a survey.
• Total Station: Instrument combining angle and distance measurement.
• EDM: Electronic Distance Measurement.
• Azimuth: The compass direction of a line.
• Error of Closure: Quality check comparing measured vs. computed position.
• Least-Squares Adjustment: Statistical error minimization.
• GDOP: Effect of geometry on positioning accuracy.
• Multipath Error: Signal reflection causing measurement inaccuracies.

Illustrations

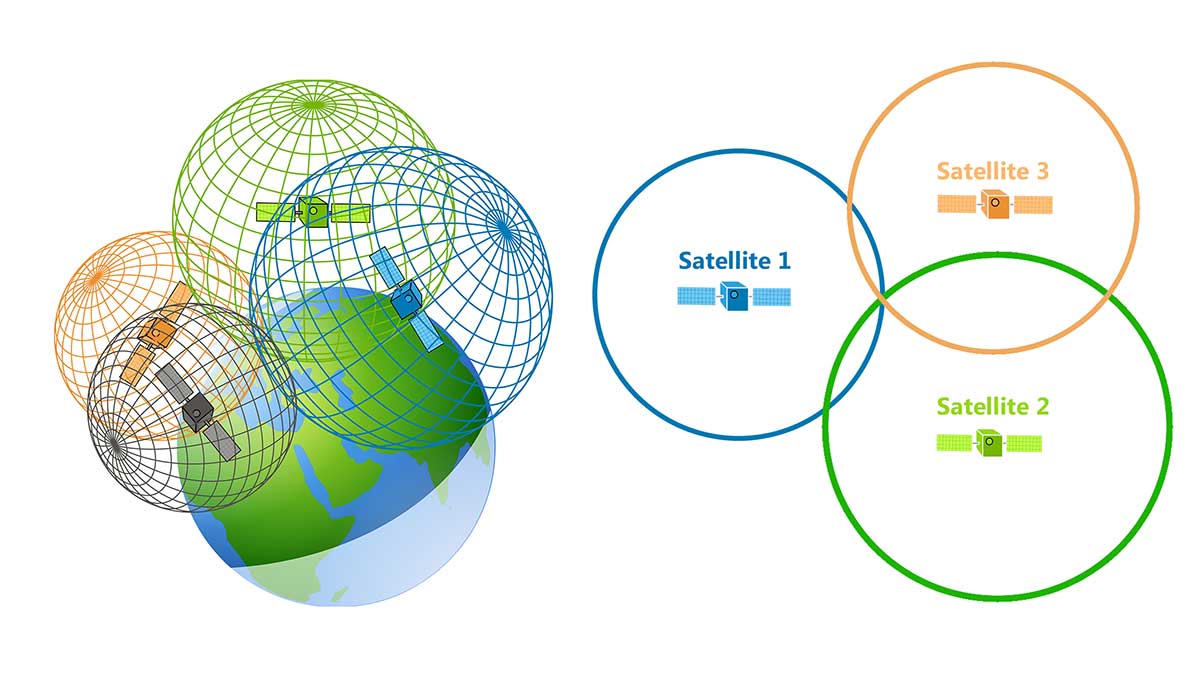

2D Trilateration Example:

3D Trilateration (GPS):

Frequently Asked Questions

Q: Why does trilateration require at least three known points in 2D and four in GNSS?
A: In 2D, three circles intersect at a unique point. In 3D, three spheres yield two positions; a fourth measurement removes ambiguity and corrects the receiver’s clock in GNSS.

Q: Why is trilateration used in GPS, not triangulation?
A: Measuring angles to satellites is impractical due to distance and movement; distance-based trilateration is far more feasible with electronic signals.

Q: How do surveyors ensure trilateration accuracy?
A: By repeating measurements, checking error of closure, using least-squares adjustment, and following best geometric practices.

Q: Can trilateration be performed without electronics?
A: Yes, for small-scale surveys using tapes or chains, but electronic instruments greatly improve efficiency and accuracy.

Q: What is GDOP in trilateration?
A: Geometric Dilution of Precision quantifies how the spatial layout of control points or satellites affects the accuracy of position calculation; lower is better.

Trilateration is the cornerstone of modern geospatial science—powering everything from property surveys to global navigation and location-based services. Its mathematical elegance and practical reliability ensure its ongoing significance in engineering, navigation, and technology.
