Calibration Curve: In-Depth Glossary and Technical Guide

Definition and Core Principles

A calibration curve is a foundational graph in measurement science, depicting the precise relationship between known reference values—such as analyte concentrations, applied forces, or masses—and the measured response output from an analytical instrument or sensor. This relationship is critical because it allows users to translate raw instrument readings into accurate, real-world values using a mathematically derived function (often through regression analysis).

• X-axis: Known, independently variable values (e.g., concentrations, applied forces, reference voltages).
• Y-axis: Instrument’s measured response (e.g., absorbance, output voltage, fluorescence intensity).

The calibration curve is often linear within a defined range (expressed as y = mx + b, where m is sensitivity and b is baseline offset), but nonlinearity can occur due to detector saturation, matrix effects, or physical limits. Regulatory bodies like ICAO and ISO require the validation of calibration curves for linearity, repeatability, and traceability.

Also known as: Standard curve, calibration function.

Applications: Analytical chemistry, aviation maintenance, environmental monitoring, pharmaceutical quality control, engineering force measurement.

Construction of a Calibration Curve: Methodology

1. Preparation of Calibration Standards
Prepare reference solutions or materials with precisely known values, traceable to certified standards. The quality of these standards underpins the entire calibration’s accuracy.

2. Measurement of Instrumental Response
For each standard, measure the instrument response (e.g., absorbance, voltage) under controlled and documented conditions. Perform replicates to assess repeatability.

3. Plotting and Model Fitting
Plot the measured response (y-axis) versus known value (x-axis). Apply a mathematical model—often linear regression. Analyze the goodness-of-fit (R²), check residuals for systematic deviations, and assess for outliers.

4. Documentation
Record all details: standard preparation, environmental conditions, instrument IDs, calibration data, and regression outputs. These records ensure traceability and compliance with ISO/IEC 17025, ICAO, and other standards.

5. Application
Use the curve’s equation to determine unknowns by measuring their response and interpolating or (carefully) extrapolating as validated.

Example: Calibration Curve in UV-Vis Spectrophotometry

One classic application is UV-Vis spectrophotometry, used in laboratories and for aviation fuel quality checks. Here, absorbance (y-axis) is plotted against the known concentration of an analyte (x-axis).

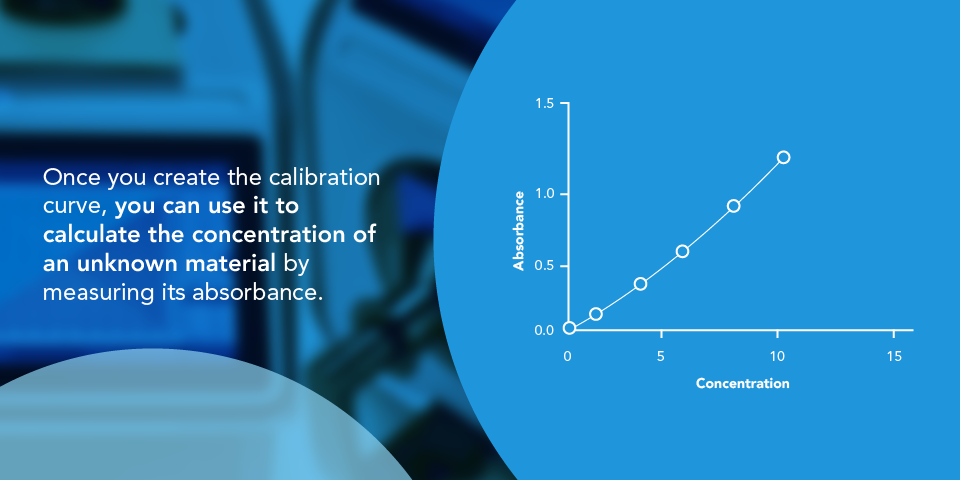

Figure: A calibration curve in UV-Vis spectrophotometry. Absorbance values for known concentrations yield a regression line, which is then used to determine the concentration of unknown samples.

Steps:

• Prepare standard solutions of the analyte.
• Measure absorbance for each standard (ideally in triplicate).
• Plot absorbance vs. concentration, fit a regression line, and calculate R².
• Use the regression equation to determine the concentration of unknowns.

Example: Load Cell Calibration in Force Measurement

In aviation and industry, calibration curves are essential for load cell calibration—establishing the link between applied force (x-axis) and output voltage (y-axis).

Table: Example calibration data for a load cell. Regression analysis yields the calibration function for force measurement.

Process:

• Apply traceable reference weights/forces.
• Measure and record output for each standard.
• Fit a regression model (linear or polynomial for nonlinear sensors).
• Use the curve to convert future readings to actual force values.

Analytical Methods: Regression Techniques

• Linear Regression: Most common; y = mx + b.
• Polynomial/Nonlinear Regression: Used when instrument response is nonlinear.
• Weighted Regression: Applies when measurement variance changes across the range.

Goodness-of-fit (R²) and residual analysis are essential for assessing model quality. Software tools (e.g., OriginLab, GraphPad Prism, MATLAB) automate regression, residuals, and uncertainty analysis.

Linearity, Range, and Limitations

• Linearity: The instrument response is proportional to the known value over the selected range.
• Linear Dynamic Range: The span between the lowest and highest standards where the curve remains valid.
• LOD/LOQ:
  • Limit of Detection (LOD): Lowest detectable value above noise.
  • Limit of Quantitation (LOQ): Lowest value quantifiable with precision.

Regulatory guidelines (e.g., ICH Q2(R1), ISO/IEC 17025) require validation for linearity, range, LOD, LOQ, accuracy, and precision.

Advanced Calibration Techniques

• Weighted Regression: Improves accuracy when response variance is not uniform.
• Nonlinear Calibration: Used for systems with inherent nonlinearity (e.g., enzyme kinetics, immunoassays).
• Standard Addition: Compensates for matrix effects by constructing the curve within the sample matrix.

Calibration Curve in Aviation

Aviation applications (per ICAO Doc 8071 and ISO 9001) rely on calibration curves for:

• Fuel quality analysis
• Hydraulic fluid contamination checks
• Calibration of avionics and force sensors

Calibration records must be comprehensive, including traceability, environmental conditions, data, regression analysis, and uncertainty estimates. Regular recalibration is required for safety and regulatory compliance.

Data Analysis, Error Sources, and Troubleshooting

Common errors:

• Standard preparation errors (pipetting/weighing)
• Instrument drift or malfunction
• Environmental variations
• Matrix mismatches

Outliers and leverage points can distort regression; analyze residuals for model appropriateness. Estimate total measurement uncertainty for regulated reporting.

Best practices:

• Fresh standards
• Matrix matching
• QC samples in every run
• Document all calibration activities

Applications and Use Cases

• Analytical Chemistry: Quantitative analysis (spectrophotometry, chromatography)
• Aviation Maintenance: Force sensors, load cells, avionics calibration
• Environmental Monitoring: Air/water pollutant measurement
• Pharma Quality Control: Drug concentration validation, stability testing
• Biochemistry: Protein, DNA/RNA quantitation

Glossary of Related Terms

• Analyte: The substance being measured.
• Standard Solution: Solution with known, traceable concentration.
• Instrument Response: Measured output (absorbance, voltage, current).
• Regression Analysis: Fitting a mathematical model to calibration data.
• LOD/LOQ: Statistical metrics for detection/quantitation limits.
• Matrix: The sample’s chemical/physical environment.
• Traceability: Unbroken chain of documented calibrations to a standard.
• Outlier/Leverage Point: Data points that deviate or are at range extremes.

Calibration Curve Quality Control and Documentation

Quality Control:
Use independent QC samples (prepared separately from calibration standards) to verify curve accuracy. Any deviation triggers an investigation.

Documentation:
Maintain detailed logbooks or electronic records of all calibration activities, standards, instrument IDs, environmental conditions, QC results, and corrective actions. In aviation, these are part of the permanent maintenance record.

Regulatory and Industry Standards

• ISO/IEC 17025: Competence for testing/calibration labs, requiring traceable, validated calibration.
• ISO 9001: Quality management, mandates calibration procedures and documentation.
• ICH Q2(R1): Analytical procedure validation (pharma).
• ICAO Doc 8071: Aviation calibration/inspection standards.
• GLP/GMP: Good Laboratory/Manufacturing Practice; require robust calibration and documentation.

Summary Table: Calibration Curve

Images

Figure: Example of a calibration curve in UV-Vis spectrophotometry, plotting absorbance vs. concentration.

For precise, compliant calibration curve implementation, always consult your industry’s regulatory standards (e.g., ISO, ICAO, ICH) and follow best laboratory practices.
