What is a Semicircle?

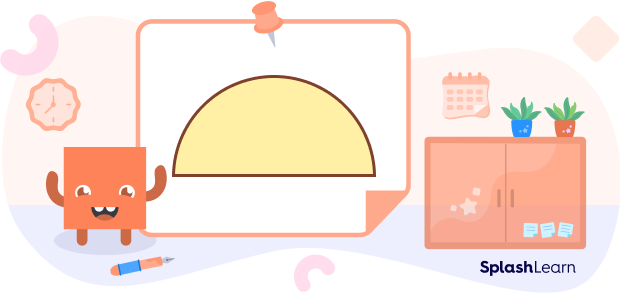

A semicircle is a two-dimensional geometric figure that represents exactly half of a circle. It’s bounded by a straight line (the diameter) and a curved edge (the arc). In formal terms, a semicircle is the locus of points forming a half-circle when a diameter divides a full circle. The arc of a semicircle measures 180 degrees (π radians), and the center matches the original circle’s center.
Semicircles aren’t just theoretical, they’re common in engineering, architecture, design, and nature. From the shape of ancient Roman arches to the cross-section of tunnels, the semicircle’s efficiency and strength are widely applied. In mathematics, semicircles are fundamental for theorems about inscribed angles and constructing right angles with compass and straightedge.
In analytic geometry, a semicircle centered at (h, k) with radius r is defined by the equation:
[
(x - h)^2 + (y - k)^2 = r^2
]
with the condition y ≥ k (upper semicircle) or y ≤ k (lower semicircle).
Properties of a Semicircle
- Symmetry: Semicircles are symmetric about their diameter. Every point on one side of the diameter mirrors a point on the other side.
- Not a Polygon: Because part of its boundary is curved, a semicircle is not a polygon, but it is a simple closed curve.
- Area & Perimeter: The area is exactly half that of a full circle. The perimeter combines the arc and the diameter.
- Inscribed Angles: Any angle inscribed in a semicircle is always a right angle (Thales’ Theorem).
- Central Features: The center, radius, and diameter all correspond to those of the parent circle.
These properties underlie structural design, right-angle construction, and calculations in manufacturing, civil engineering, and navigation.
Semicircle in Geometry: Definitions and Equations
For a circle centered at the origin (0,0) with radius r:
- Full circle: (x^2 + y^2 = r^2)
- Upper semicircle: (y = +\sqrt{r^2 - x^2}), for (-r \leq x \leq r)
- Lower semicircle: (y = -\sqrt{r^2 - x^2}), for (-r \leq x \leq r)
For a center at (h, k):
((x - h)^2 + (y - k)^2 = r^2), with y ≥ k or y ≤ k.
In trigonometry, the unit semicircle (radius = 1) is vital for defining sine and cosine between 0 and π radians.
Area of a Semicircle
The area (A) of a semicircle with radius r: [ A = \frac{1}{2} \pi r^2 ]
If using diameter d: [ A = \frac{1}{8} \pi d^2 ]
This formula is crucial in fields like construction, where the area determines material needs, and in physics for cross-sectional calculations.
Perimeter (Circumference) of a Semicircle
The perimeter (P) is the sum of the arc and diameter: [ P = \pi r + 2r ] or, in terms of diameter d: [ P = \frac{\pi d}{2} + d ]
The arc length alone (no diameter) is πr.
Worked Examples
Example 1: Area (radius 7 cm)
Area = (1/2) × π × 7² = (1/2) × (22/7) × 49 = 77 cm²
Example 2: Perimeter (diameter 14 m)
Radius r = 7 m
Perimeter = (22/7) × 7 + 2 × 7 = 22 + 14 = 36 m
Example 3: Arc Length (radius 5 in)
Arc = π × 5 = 15.71 in
Example 4: Cake (diameter 12 cm)
Radius = 6 cm
Area = (1/2) × 3.14 × 36 = 56.52 cm²
Practice Problems
Basketball court semicircle (radius 7 ft, π=22/7):
Perimeter = (22/7) × 7 + 14 = 36 ftArea (diameter 10 cm, π=3.14):
Radius = 5 cm
Area = (1/2) × 3.14 × 25 = 39.25 cm²Perimeter is 44 units (π=22/7), find r:
( r = 44 / [(22/7) + 2] ≈ 8.56 ) unitsTunnel (radius 4 m):
Arc = 3.142 × 4 = 12.568 m
Real-Life Applications
- Architecture: Roman arches, domes, and tunnels use semicircular cross-sections for strength and beauty.
- Sports: Basketball and football fields use semicircular markings for gameplay.
- Engineering: Semicircular cross-sections optimize load distribution and material use.
- Aviation: Aircraft holding patterns and air traffic procedures employ semicircular logic for safety.
- Education & Design: Protractors, art, and digital interfaces often use semicircular shapes.
Advanced Mathematical Concepts
- Trigonometry: The unit semicircle underpins sine and cosine for 0 to π.
- Probability: The semicircular distribution appears in random matrix theory.
- Physics/Engineering: Semicircular ducts and plates are analyzed for airflow, stress, and moment of inertia.
Summary Table of Formulas
| Property | Formula (radius r) | Formula (diameter d) | Description |
|---|---|---|---|
| Area | (\frac{1}{2} \pi r^2) | (\frac{1}{8} \pi d^2) | Region inside semicircle |
| Arc Length | (\pi r) | (\frac{\pi d}{2}) | Curved edge only |
| Perimeter | (\pi r + 2r) | (\frac{\pi d}{2} + d) | Curved edge + diameter |
| Diameter | (2r) | (d) | Longest straight line in semicircle |
| Inscribed Angle | (90^\circ) | Any triangle inscribed in semicircle is right |
Semicircle in Aviation (ICAO Relevance)
In aviation, the semi-circular rule assigns aircraft cruising altitudes based on magnetic track: tracks 000°–179° get odd thousands, 180°–359° get even thousands. This leverages the 180° split of a semicircle for safe vertical separation, as specified in ICAO Doc 4444.
Semicircular holding patterns also organize aircraft flow at airports, with half-circle arcs guiding planes predictably and safely. Range rings and terminal layouts often use semicircular designs for clarity and efficiency.
Science, Technology, and Culture
Semicircles are vital in:
- Optics: Demonstrate refraction and critical angles.
- Acoustics: Used in sound reflectors and hall design.
- Electronics: Analyze current in semicircular wires.
- Culture & Symbolism: Represent openness, transition, and movement in art, architecture, and ceremonies.
- Digital Design: Semicircular progress bars and UI elements for intuitive interfaces.
Key Takeaways
- A semicircle is half a circle, defined by a diameter and arc.
- Area: (\frac{1}{2} \pi r^2)
- Perimeter: (\pi r + 2r)
- Inscribed angles in a semicircle are always right angles (90°).
- Semicircles are essential in geometry, engineering, architecture, and aviation.
For more detailed applications and tailored solutions using semicircles in your field, contact us or schedule a demo .
Frequently Asked Questions
- Is a semicircle the same as a half-circle?
- Yes, 'semicircle' and 'half-circle' are interchangeable terms for the same geometric shape: one-half of a circle, split along its diameter.
- How do you calculate the area of a semicircle?
- The area of a semicircle with radius r is (1/2) × π × r². If the diameter is known, use (1/8) × π × d².
- What is Thales' Theorem and how does it relate to a semicircle?
- Thales’ Theorem states that any angle inscribed in a semicircle is always a right angle (90°). This is a key property of semicircles in geometry.
- Does the perimeter of a semicircle include the diameter?
- Yes. The perimeter (or boundary length) of a semicircle is the sum of the curved arc and the straight diameter: P = πr + 2r.
- What is the semicircular rule in aviation?
- The semicircular rule assigns cruising altitudes to aircraft based on magnetic track, ensuring safe vertical separation by leveraging the half-circle concept.
